This aluminum pier and gangway system is located in Essex, MA. The 108' long x 4' wide pier consists of four 27' long x 4' wide aluminum pier sections that are supported by fiberglass pilings. The aluminum gangway at the end of the pier is 32' long and 3' wide.

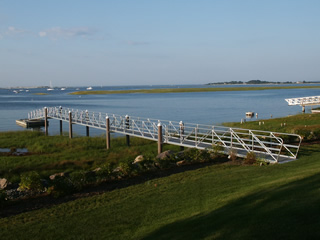

 Four foot aluminum pier with a 3 foot gangway located in Essex, MA.
This photo shows the I-Bar grating that allows 70% light penetration required by some ordinances. The pilings are fiberglass by Pearson Pilings, Fall River, MA. This photo shows the I-Bar grating that allows 70% light penetration.

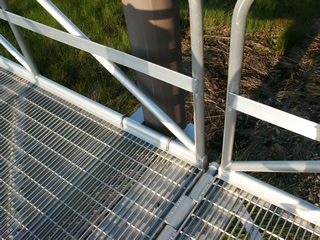

This picture shows the piano hinges that are used to connect each pier section together to make a smooth transition. It also shows the U-bolts that attach the gangways to aluminum angle brackets. piano hinges that connect sections and the U-bolts that attach the gangways to the angle iron brackets.

The aluminum gangways are clamped to the aluminum angle brackets that are attached to the fiberglass pilings giving a nice clean, sleek appearance.

Pricing for all decking is available on our pricing page.

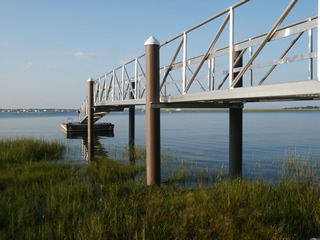

 The aluminum gangway is clamped to angle irons attached to fiberglass pilings.
